- Aluminum Alloy Pedal Assembly: The CRP pedals are primarily made of CNC aluminum alloy, offering drivers a solid, sturdy and reliable platform that can easily withstand heavy braking or the quickest foot work.
- Load Cell Pressure Sensor: Featuring MOZA’s M-Pressure system, the CRP Pedals utilize a high-precision load cell sensor to consistently and accurately measure braking force.
- 3-Stage Clutch: The CRP 3-stage clutch offers a serious advantage to ensure drivers get the best possible launch. The first stage provides low resistance, with a sharp increase in the second stage, simulating a clutch disc spring. The final third stage has a clear resistance drop off, to ensure consistency for every race start.
- Fully Adjustable for Every Racer: Easily change the resistance of each pedal individually, using the included springs and damping blocks to create your perfect pedal feel. Configure linearity easily in the MOZA Pit House App.
- Adjustable Travel: Use the adjustable knobs to customize the CRP pedal travel, for even more comfort options and the perfect fit.
- Adjustable Fit: MOZA’s patented pedal angle adjustment allows for extended options when adjusting the pedals in depth.
MAXWELL ASR3 Turnkey
46 people are viewing this product right now
$123.00
Estimated delivery:9 days
Guarantee Safe and Secure Payment Checkout
Product Details
SYSTEM BUILD AT A GLANCE
ASR 3 (Generation 2)
Display
LG 43" 4K Ultra HD / Samsung 49” UltraWide QD-OLED / AOC Triple 31.5” 2K Curved Monitor Setup
Monitor Stand
Integrated Single Monitor Stand / Free-Standing Triple Monitor Stand
Advanced Recliner Seat (Vinyl)
MOZA Racing R5 Direct Drive Wheel Base
MOZA Racing CS Steering Wheel
MOZA Racing CRP Pedals
Wireless Gaming Headset
PC Tray
Preloaded and Configured for Plug and Play
INCLUDES SHIPPING
Bundled Ships on a Pallet
(liftgate included)
Assembled Ships in 60" x 60" x 60" Wooden Crate
Monitors not installed for safety (liftgate included)
OPTIONAL UPGRADES
MOZA Racing HBP Handbrake
Shifter
MOZA Racing SGP Shifter / MOZA Racing HGP Shifter
Mounting Plates
5.1 Logitech Z906 Surround Sound Speaker System
ASR 3 (Generation 2)
The core of your simulator setup, the ASR 3 (Generation 2) offers exceptional rigidity, stability, and flexibility for mid-to-high-end sim racing builds. Built from industrial-grade aluminum in Canada, it supports powerful direct-drive wheels and a wide range of pedals. With a redesigned wheel deck, improved pedal tray, and fast, intuitive assembly — this chassis delivers pro-level performance.
Display & Monitor Stand Options
Choose the perfect display setup to match your racing style and space. The MAXWELL ASR3 Turnkey Simulator offers three immersive viewing configurations. Each stand is engineered for full adjustability, stability, and seamless integration — whether you prefer a clean single-screen setup or an enveloping panoramic view.
Advanced Recliner Seat (Vinyl)
Designed for comfort, adjustability, and all-day racing. This reclinable sport-style seat provides strong support without the restrictions of a fixed bucket design. With its broad fit and medium side bolsters, it’s ideal for various body types — whether you’re racing short sprints or long endurance sessions. Paired with sliding seat rails, it offers easy position tuning to match your perfect driving posture.
MOZA Racing R5 Direct Drive Wheel Base
Engineered for compact setups without sacrificing performance, this 5.5Nm direct drive wheel base delivers precise, immersive force feedback for serious sim racers. Built with aviation-grade aluminum and a high-precision 15-bit encoder, it ensures you feel every detail of the track. With a built-in clamp for easy desk mounting and an infinite rotation angle, it’s a space-saving powerhouse for racers who demand more.
MOZA Racing CS Steering Wheel
A full-size 13” sim racing wheel engineered for precision, durability, and control. Built with aviation-grade aluminum and forged carbon fiber components, it’s designed to replicate the feel of a real race car. The contactless magnetic shifters, programmable buttons, and customizable LED shift indicators make it ideal for both competitive and immersive driving. Seamless wireless connectivity and quick-release mounting ensure a clean, efficient setup.
MOZA Racing CRP Pedals
The MOZA CRP Pedals bring high-end hypercar-inspired design and robust performance to your racing setup, with fully adjustable CNC aluminum pedals and a precision load cell for realistic braking feedback. A standout feature, the 3-stage clutch simulates a real-world clutch feel with progressive resistance stages, ensuring smooth, controlled starts. Each pedal’s resistance, angle, and travel can be customized individually to fit your preferences, with adjustments accessible through the MOZA Pit House App. With an organ-type throttle that follows natural foot movement, the CRP Pedals offer exceptional comfort, precision, and control, ideal for racers who demand the best in adjustability and performance.
Wireless Gaming Headset
Experience true freedom and comfort with this wireless gaming headset. Engineered for low-latency performance and long-wear comfort, it delivers immersive surround sound, adaptive voice filters for crystal-clear chat, and dynamic RGB lighting that syncs with your gameplay. Play louder, chat clearer, and stand out in style—no strings attached.
PC Tray
Keep your gaming PC safely off the floor and in clear view, with easy access for cable routing and component showcases. Mounts directly to your rig’s aluminum profiles to free up floor space and serve as a counterbalance for a freestanding monitor stand. Tool-less adjustments let you slide and position the tray exactly where you need it—no more crawling under your desk to reach ports or power buttons.
Built by MAXWELL
Your turnkey rig arrives fully assembled, optimized, and ready to race. We pre-install all the major software—iRacing, Assetto Corsa Competizione, Automobilista 2—along with essential apps like Steam, Discord, TeamViewer, Crew Chief, and more. Once everything is configured, we expertly crate your system and ship it straight to your door.
Please note: Racing sims must be tied to your personal account, so you’ll need to purchase and log in to those software yourself. Don’t worry—we’ll guide you step-by-step through the activation process!
OPTIONAL UPGRADES
MOZA Racing HBP Handbrake
Experience true-to-life braking control with this precision handbrake lever. Its CNC-machined aviation-grade aluminum body and anodized finish resist wear and deliver consistent feel. A contactless 16-bit angle sensor provides smooth, accurate feedback, while adjustable lever angles and interchangeable springs let you dial in brake force and travel to suit road-car or rally-style setups.
Shifter Options
Customize your MAXWELL ASR3 Turnkey with the shifter style that suits your driving preference. Choose the SGP Shifter for fast, precise flick-shifts and compact footprint, or go with the HGP Shifter to replicate true manual gearbox feel.
Logitech Z906 5.1 Surround Sound Speaker System
Add a cinematic audio dimension to your turnkey rig with this THX-certified 5.1 surround speaker system. Five satellite speakers and a powerful subwoofer deliver clear, directional effects and deep bass for total immersion. A compact control console plus wireless remote let you switch sources and tweak levels on the fly.
Maxwell Plug & Race
Your sim, perfectly calibrated and race-ready from day one.
We assemble, configure, and rigorously test every system just like a professional racing team preps a car—meticulous cable management, precision torque settings, and full calibration of wheelbase, pedals, and display alignment. Every component is stress-tested under simulated track conditions to ensure rock-solid stability and flawless performance.
When your rig arrives, simply unpack it, connect power and peripherals, and fire up your favorite sim titles. We handle OS setup, driver installation, software calibration, and quality-control checks so you can focus on one thing: going flat-out.
MAXWELL ASR3 Turnkey
Start strong with a simulator built for growth.
This rig is the ideal entry point into the world of sim racing — professional feel, beginner-friendly, and future-ready. Engineered to evolve with you, it allows for easy, low-cost upgrades as your passion and performance grow. Whether you’re training to win or just getting started, this setup gives you the perfect launchpad.
Chassis Specifications – ASR 3 (Generation 2)
A highly stable and adjustable mid-range chassis, designed to handle high-performance components with zero flex and strong compatibility across setups. With its redesigned structure and simplified assembly, this frame is built for both precision and ease of use.
Chassis Materials & Build:
- Industrial-grade extruded aluminum profile (3” x 1.5”)
- Matte black powder-coated finish for durability and clean aesthetics
- Textured finish on steel components (pedal/wheel plates)
Design Highlights:
- New Gen 2 flat-face aluminum profiles for improved rigidity
- Overhauled assembly system for faster setup and optimal stability
- Updated pedal tray and heel rest with enhanced adjustability
Dimensions & Fit:
- Base length: 50”
- Base width: 22”
- Total height (including feet and steering column): 28”
- Total weight (without accessories): approx. 71 lbs
- Suitable for users up to 6’6” (1.98m)
Displays Specifications
1. LG 43″ 4K Ultra HD
Display & Panel:
- Screen Size: 42.5” (diagonal)
- Display Type: LED with Direct Backlight
- Native Resolution: 3840 × 2160 (4K UHD)
- Aspect Ratio: 16:9
- Refresh Rate: 60Hz
- Viewing Angles: 178° horizontal / vertical
- HDR: HDR10 Pro
Performance Features:
- Intelligent image and sound optimization via AI processor
- Game Mode and dedicated Game Optimizer dashboard
- Automatic brightness adjustment for any room lighting
Smart System & Connectivity:
- Platform: Smart OS with built-in apps and streaming services
- Voice Assistants: Compatible with Alexa and Google Assistant
- Connectivity: 2x HDMI, 1x USB, Digital Audio Out, Ethernet, Bluetooth, Wi-Fi
- Screen Mirroring: Apple AirPlay 2 supported
Dimensions:
- Dimensions (w/o stand): 38.1” W × 22.2” H × 2.2” D
- Weight (w/o stand): 19.4 lbs
- Power: 55W operational, <0.5W standby
2. Samsung 49” UltraWide QD-OLED
Display & Performance:
- Panel Type: QD-OLED, Curved 1800R
- Screen Size: 49” diagonal (32:9 aspect ratio)
- Resolution: 5120 × 1440 (Dual QHD)
- Refresh Rate: 240Hz via DisplayPort / 165Hz via HDMI
- Response Time: 0.03ms (GtG)
- HDR: DisplayHDR True Black 400
- Contrast Ratio: 1,000,000:1
- Brightness: 250 cd/m²
- Viewing Angles: 178° H / 178° V
- Color: 1.07 Billion (10-bit)
Features & Enhancements:
- Adaptive Sync: Compatible with G-Sync & FreeSync Premium Pro
- Integrated smart platform with access to streaming apps
- CoreSync RGB ambient lighting
- Built-in 2x5W speakers with adaptive sound
- Game Mode, Game Bar, Picture-by-Picture
Dimensions:
- Width: 47.04”
- Height: 20.84”
- Depth: 9.33”
- Weight: 28.4 lbs
- Power Consumption: <220W operational / <0.5W standby
3. AOC Triple 31.5” 2K Curved Monitor Setup
Panel & Display:
- Screen Size (each): 31.5”
- Resolution: 2560 × 1440 (QHD) per screen
- Panel Type: VA with anti-glare coating
- Refresh Rate: 165Hz (DP), 144Hz (HDMI)
- Response Time: 1ms (MPRT)
- Curvature: 1000R for natural wraparound viewing
- Contrast Ratio: 3000:1 (native), 80M:1 (dynamic)
- Brightness: 300 cd/m²
- Color: 16.7 Million, 8-bit depth
- Viewing Angles: 178° H / 178° V
- Color Gamut: Adobe RGB 75%, DCI-P3 75%
Dimensions (each):
- Power Use: <52W operational / <0.3W standby
- Width: 27.58”, Height: 16.70”, Depth: 13.37”
- Weight: 17.97 lbs
Monitor Stand Specifications
1. Integrated Single Monitor Stand
Structure & Materials:
- Frame: Flat Face Gen 2 extruded aluminum
- Finish: Infinite Black powder coat (matte)
- Includes reinforced gussets, caps, and mounting brackets
- Integrated with sim chassis for space-efficient setup
Dimensions (Frame Components):
- 2 × Aluminum profile: 36” × 3” × 1.5”
- 1 × Aluminum crossbar: 22” × 1.5”
2. Integrated Single Monitor Stand
Structure & Materials:
- Material: Gen 2 extruded aluminum with steel reinforcement
- Finish: Infinite Black powder coat (textured, matte)
- Zero-flex design ensures screen stability during racing
3. Free-Standing Triple Monitor Stand
Structure & Materials:
- Frame: Gen 2 Flat Face aluminum profiles (3” x 1.5”)
- Steel Parts: Textured matte black powder-coated
- Stand Type: Free-standing (independent of rig)
Dimensions:
- Central Beam Width: 40”
- Side Beam Width: 24” each
- Max Stand Height: 40”
Seat Specifications – Advanced Recliner Seat (Vinyl)
Build & Finish:
- Durable sport-style PVC leather upholstery
- Medium side bolsters for balance between support and freedom
- Embroidered detailing on headrest
- Easy installation with included seat sliders
Dimensions:
- Overall seat height: 36”
- Seat width (outside): 21”
- Seat length (standard tilt): 24”
- Inner width at shoulders: 21”
- Inner width at thighs: 15”
- Seat depth: 19”
Wheel Base Specifications – MOZA Racing R5 Direct Drive Wheel Base
Performance & Control:
- Torque Output: 5.5Nm peak
- Drive Type: Direct drive servo motor
- Rotation Range: Infinite
- Encoder: High-precision 15-bit resolution
- USB Refresh Rate: 1000Hz
Design & Materials:
- Chassis: Aviation-grade aluminum alloy
- Finish: Matte black with steel components
- Mounting: Bottom-mounted (4-hole pattern) + table clamp included
- Quick-release system for fast wheel swaps
Compatibility & Features:
- Platform: PC
- Connectivity: Power, data, pedals, wheel input ports
- App Integration: Real-time tuning via supported software
- Firmware: Online updates supported
- Emergency Stop: Optional accessory

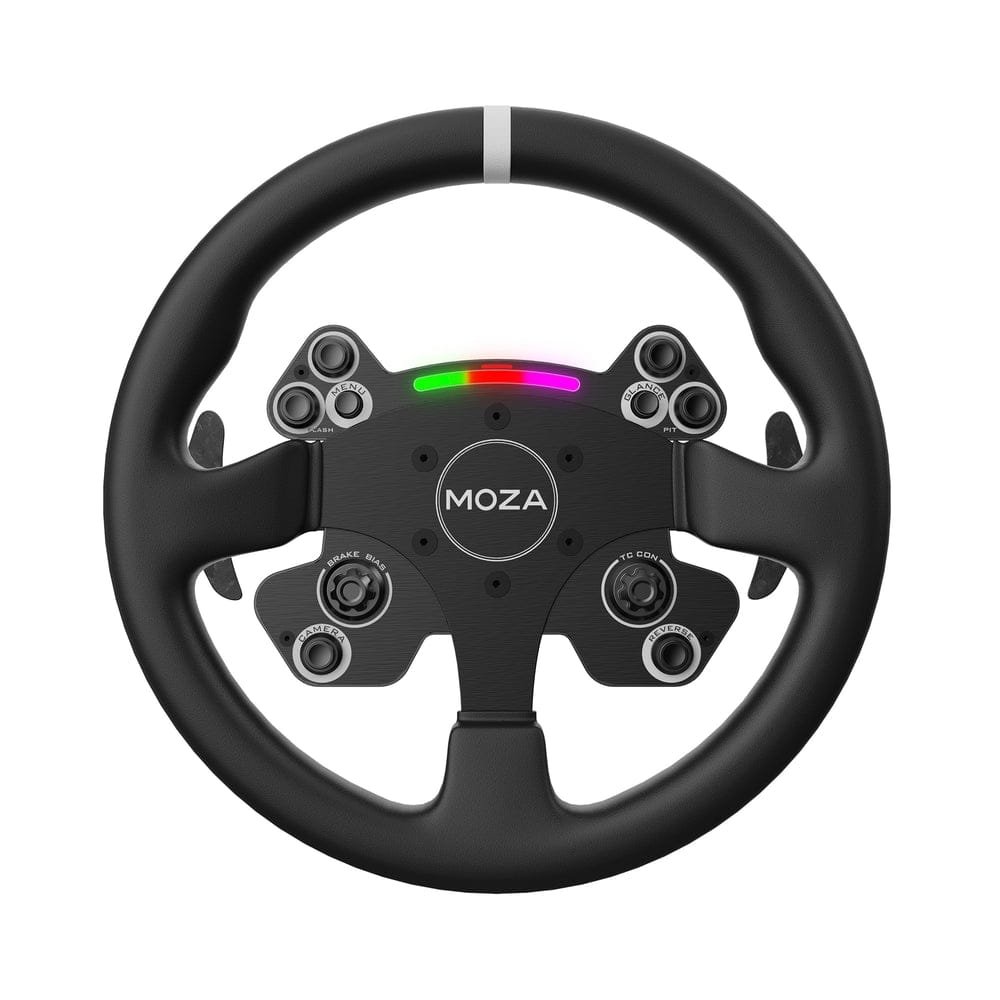

Steering Wheel Specifications – MOZA Racing CS Steering Wheel
Build & Materials:
- Frame: Aviation-grade aluminum alloy
- Grip Material: Microfiber leather
- Shifters: Magnetic, forged carbon fiber
- Rear housing: Aluminum alloy
Functionality & Controls:
- Size: 13” (realistic racing diameter)
- Mechanical Buttons: 6 programmable
- Joysticks: 2 pressable, multi-functional
- Dials: 2 tactile 20-segment rotary encoders
- RGB Shift Indicator: 10 LEDs, 7 customizable colors
- Sensor: Contactless photoelectric for gear shifting
Pedals Specifications – MOZA Racing CRP Pedals
Specifications
- Overall Material: CNC Aluminum Alloy
- Max Range of Pressure Sensor: 100KG
- Throttle Form: Organ Floor Type
- Pedal Force: Adjustable
- Pedal Face Angle: Adjustable
- Pedal Distance: Adjustable
- Pedal Flush: Adjustable
- Pedal Travel: Adjustable
- Size: 364mm*415.1mm*256.5mm
- Mass: 7.5KG
Wireless Gaming Headset Specifications
- Low-latency 2.4 GHz RF connection
- Reliable range for untethered play
- Immersive virtual surround-sound support
- High-performance audio drivers
- Adaptive voice filters for noise reduction and clarity
- Detachable/flip-to-mute boom mic
- Dynamic RGB LED zones synchronized to gameplay
- Fully customizable lighting profiles
- Lightweight frame with adjustable headband
- Plush memory-foam ear cushions for long-wear comfort
PC Tray Specifications
- Heavy-gauge steel platform with black powder-coat finish
- Anti-scratch polymer feet to protect chassis profiles
OPTIONAL UPGRADES

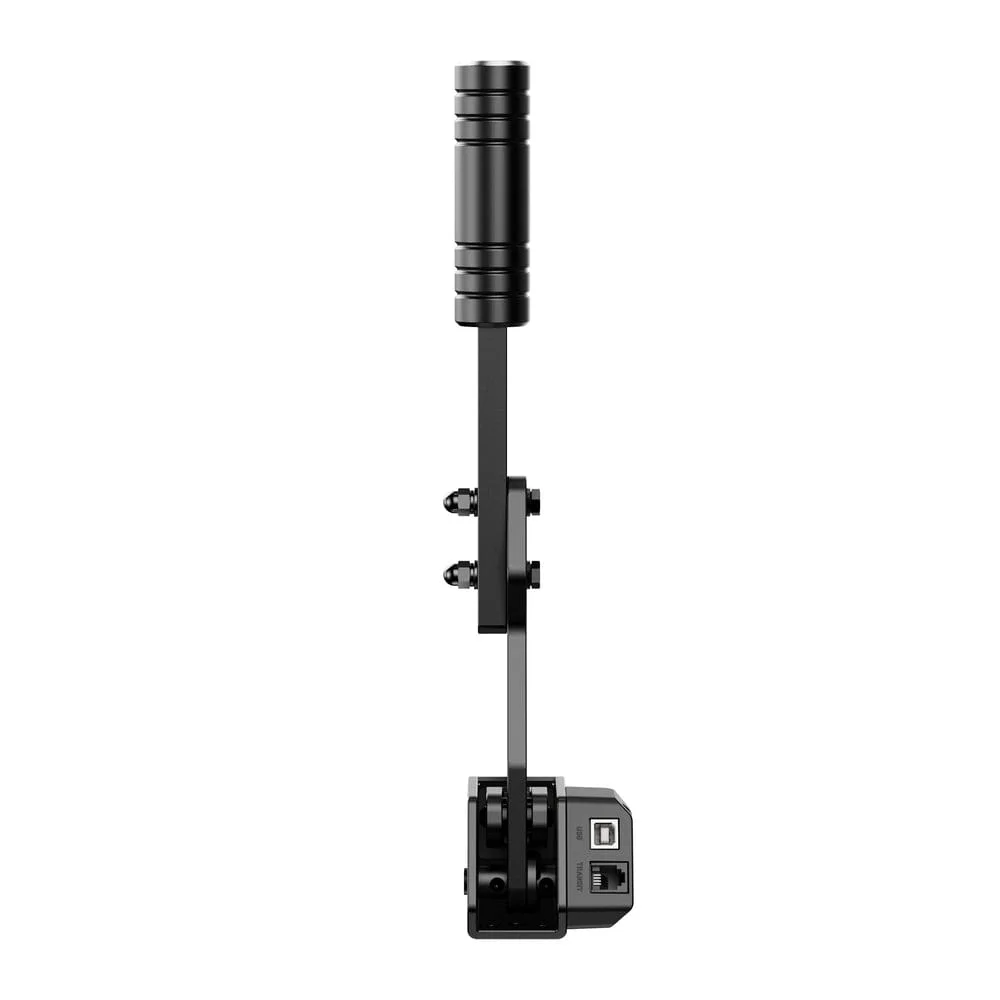

Handbrake Specifications – MOZA Racing HBP Handbrake
Build & Materials
- Body: CNC-machined aviation-grade aluminum, anodized
- Sensor: Contactless 16-bit high-precision angle encoder
Dimensions & Weight
- Size: 153 × 68.3 × 365.5 mm
- Net weight: 0.7 kg
Shifter Specifications
1. MOZA Racing SGP Shifter
Materials & Build
- Housing & Lever: Aerospace-grade aluminum alloy
- Steel internals: High-strength steel framework
- Finish: Anodized metallic
Performance & Controls
- Sensor: Contactless 16-bit Hall effect angle encoder
- Shift resistance: Adjustable via interchangeable damper springs
- Lever adjustments: Height range 64 mm; forward or reverse mounting
Dimensions & Weight
- Size: 320 × 182 × 52 mm
- Net weight: ~1.2 kg
2. MOZA Racing HGP Shifter
Materials & Build
- Housing & Lever: CNC-machined aviation-grade aluminum (anodized)
- Internals: High-strength steel with built-in damping mechanism
Shift Pattern & Mechanisms
- Gears: 7 forward + 1 reverse (reverse & 7th require downward press to engage)
- Downshift System: Patented automatic throttle-blip technology
- Sensor: Contactless 15-bit high-precision angle encoder
Durability & Protection
- Finish: Wear-resistant anodized aluminum
- Cover: Patented dust-proof funnel guard

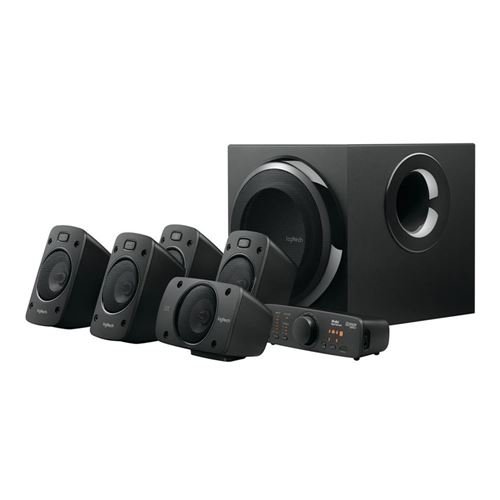

Speaker System Specifications – Logitech Z906 5.1 Surround Sound
Audio Configuration & Power
- Channels: 5.1 (4× satellite, 1× center, 1× subwoofer)
- RMS Power: Total 500 W (Satellite: 4×67 W; Center: 67 W; Subwoofer: 165 W)
- Peak Power: 1,000 W
- Frequency Response: 35 Hz – 20 kHz
- Signal-to-Noise Ratio: > 95 dB
Inputs & Controls
- Analog: 3.5 mm stereo, RCA
- Digital: 2× optical S/PDIF, 1× coaxial
- Direct: 6-channel analog input
- Control: Stackable console with volume, input, surround mode controls
- Remote: Infrared wireless with full control
Additional Details
- IR Remote Range: up to 5 m
- Dimensions: Satellites 4” × 7” × 4” each; Subwoofer 12” × 13” × 9”
- Weight: Subwoofer ~15 lbs; each satellite ~2 lbs
Built by MAXWELL
Your turnkey rig arrives fully assembled, optimized, and ready to race. We pre-install all the major software—iRacing, Assetto Corsa Competizione, Automobilista 2—along with essential apps like Steam, Discord, TeamViewer, Crew Chief, and more. Once everything is configured, we expertly crate your system and ship it straight to your door.
Please note: Racing sims must be tied to your personal account, so you’ll need to purchase and log in to those software yourself. Don’t worry—we’ll guide you step-by-step through the activation process!
1. Free Shipping Eligibility
We offer free shipping for orders over $200 to all customers within the United States. Free shipping does not apply to orders outside of this region, as our service area is limited to the continental U.S.
2. Order Processing Times
Our standard order processing time is up to 7 business days. This time frame includes order confirmation, preparation, and packaging. Please note that certain items may require additional processing time depending on their availability and demand.
3. Signature Requirement for Deliveries
All shipments are sent with a “Signature Required” option. This ensures that your order is securely delivered to the appropriate recipient. If you cannot be available to sign for the delivery, please contact the carrier directly to arrange a re-delivery or hold for pickup at a designated access point.
4. Shipping for Large or Oversized Items
Orders that include large items, such as Sim Racing Chassis, Racing Seats, and Monitor Stands, may be shipped separately due to their size and weight. Different parts of your order may arrive on separate days as these items are processed through specialized logistics services.
5. Address Modifications
To maintain efficient and timely delivery, we are unable to modify delivery addresses once the package is out for shipping. Please double-check your shipping information during the checkout process to ensure accuracy.
$123.00
Related products
- AOC Triple 31.5” 2K Monitor Setup & Triple Monitor Stand
- Samsung 49” UltraWide QD-OLED & Integrated Single Monitor Stand
- Q1 Sequential Shifter & TB-1 Handbrake
- Without Shifter And Handbrake
- D-BOX Generation 5 4250i Haptic System
- Without Motion System
$123.00
Select options
This product has multiple variants. The options may be chosen on the product page
MAXWELL ASR4 Turnkey
$123.00- AOC Triple 31.5” 2K Monitor Setup & Triple Monitor Stand
- LG Triple 45" UltraGear™ OLED Monitor Setup & Triple Monitor Stand
- Samsung Triple 54.6" 4K UHD Monitor Setup & Triple Monitor Stand
- Simucube 2 Pro
- Simucube 2 Ultimate
- Ascher Racing F64 V3
- Ascher Racing McLaren Artura Ultimate
- GSI GT-MAX32 Dual Clutch
- GSI Hyper P1
- Heusinkveld Sim Pedals Ultimate+
- Heusinkveld Ultimate+ Throttle & Clutch and Simucube Active Brake
- Advanced Traction Loss & Sway Platform powered by D-BOX Haptic System
- D-BOX Generation 5 4250i Haptic System
$123.00
Select options
This product has multiple variants. The options may be chosen on the product page
MAXWELL ASR PRO Turnkey
$123.00Customer reviews
Only logged in customers who have purchased this product may leave a review.
Reviews
There are no reviews yet.
